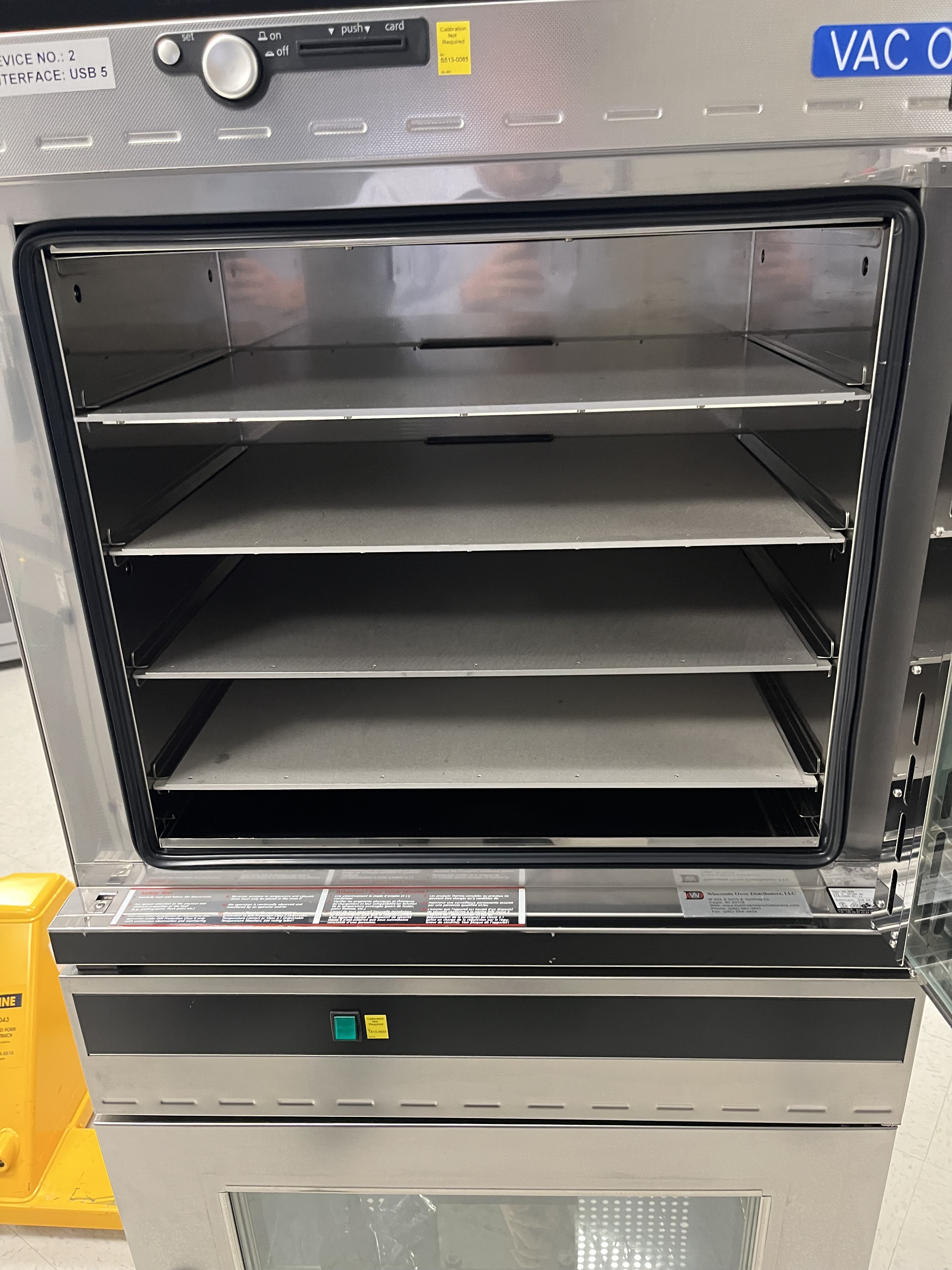

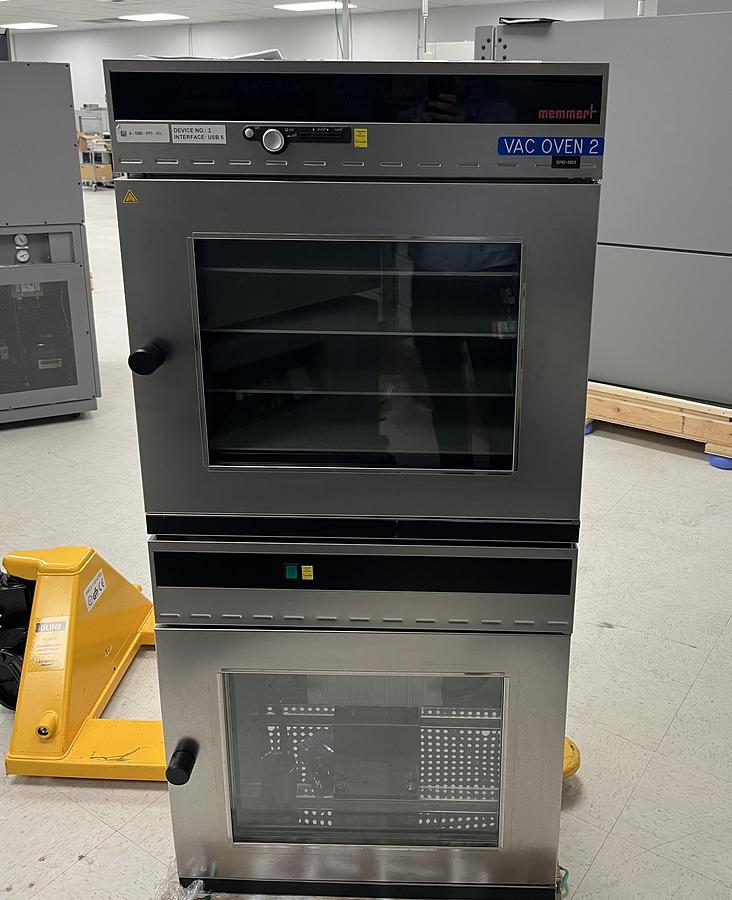

Memmert VO500 Vacuum Oven

Memmert VO500 Vacuum Oven

Model: VO500

DOM: 2013

Quantity 3

Temp Controllers

Temperature range: min. 5°C above ambient up to +200°C

Resolution of display for actual values 0.1°C up to 99.9°C, 0.5°C from 100°C

Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C

Resolution of display/setting accuracy 0.5°C up to 99.9°C, 1°C from 100°C

Vacuum digital electronic pressure control through solenoid valves

Vacuum setting accuracy 1 mbar

Vacuum adjustment range from 5 mbar to 1100 mbar - digital (LED)

Vacuum rapid air intake for door opening (door is blocked under vacuum ) – program reactivation at stored values

Vacuum drying process (vacuum cycles) is continued after power failure

Vacuum one programmable, digitally controlled inlet for air

Controller digital display of all set parameters, such as temp, weekdays, time, pressure, program status and set-up values

Controller separate LED-symbol for each thermoshelf in operation

Controller digital display of actual temperature for each thermoshelf individually

Timer digital 7-day program timer with real time clock, precise minute setting, for one set value or start of ramp operation

Timer integrated timer for tempering and pressure (vacuum) profiles of up to 40 ramps, parameters time, pressure and temperature (setpoint dependent) individually adjustable for each segment from 1 min. up to 99 hrs

Auto-diagnostic feature

Volume: 101 Liters (3.56 cu/ft)

Interior Dimensions: 545mm x 465mm x 400mm

Max. load of chamber: 60 kg

Dimensions: 710 x 760 x 550 mm

Weight: 110kg

Fully Functional
