Juki RS-1 Pick and Place Machine with Matrix Tower

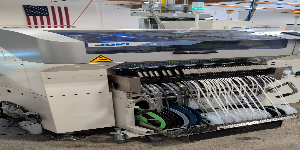

Juki RS-1 Pick and Place Machine

RS-1 Smart Modular Mounter with 8 Nozzle Adaptive Placement Head

Loaded Juki Demo Machine

DOM: 2017 (installed into production July 2020)

Hours: less than 2000

One Multi-Nozzle LNC-120 3D Laser Align System with Eight Nozzles

54mm FOV Camera, RS1, Vision Centering System

Automatic In-Flight 3D Alignment Regardless of Part Height

Max Board Size 370mm W x 650mm L

Front and Rear Feeder Float Detectors

Front and Rear Feeder Bank Lifter Kits

(2x) RF/EF Feeder Trolleys

(1x) EXTRA Feeder Trolley

Board Fiducial Offset Correction System (BOC)

Bad Mark Reading via OCC

3 Color Signal Light (G/Y/R) with Buzzer

Vacuum Pump (Air consumption: 50L/min)

Auto-Width

Board Edge Clamping System

Self-Calibration Jig

Height Measurement System

3-Stage Pass Thru-Conveyor

Windows Embedded Standard Operating System & System Optimization Software

Matrix Tray Changer (Side mount, non-stop operation)

2 magazines with 15 trays each - 30 total;

Includes the following feeders:

• 8mm – 90
• 12mm & 16mm – 20 (combined, exact amt of each unknown)
• 24mm & 32mm – 10 (combined, exact amt of each unknown)
• 44mm – 1
• Stick/Vibe – 1
• Setup trolley small
• Storage cart (mossman tebbs)
