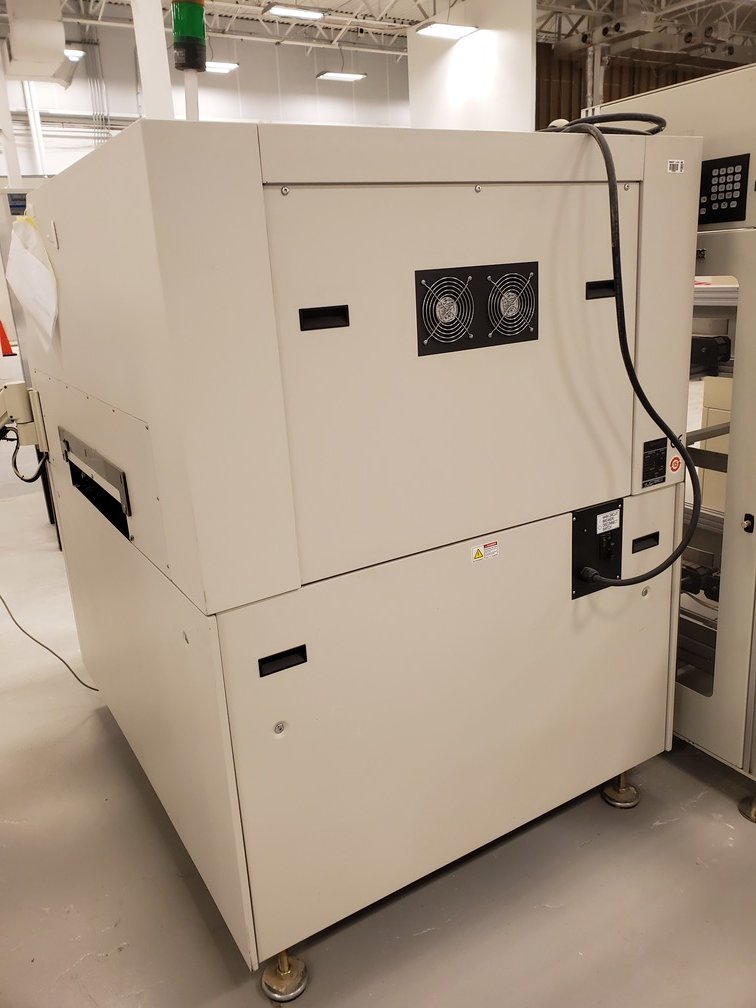

MPM Momentum Screen Printer (2010)

MPM Momentum Screen Printer (2010)
or
Description
MPM Momentum Screen Printer
EdgeLoc Snugger System
Advanced Post Print Inspection Package
Contrast Based 2D Inspection (paste on pad) & BridgeVision
Programmable squeegee print head
Closed Loop Stencil Wiper with Vacuum and Solvent
Digital probe with telecentric optics, ultrasonic board stop sensor, and LED flash lighting
IR Light - Enhances Inspection Recognition for OSP Boards
Automatic Stencil Positioning
Programmable Board Stop (Hardstop and Non Contact Stop included)
Centernest clamping includes: Fixed top clamps and centernest vacuum hold-down
Front Fixed Single Tracks
Board thickness range of 0.2mm to 5mm
Min Board: 50.8mm X 50.8mm (2" X 2")
Max Board: 609.6mm X 508mm (24" X 20")
Windows XP based Benchmark GUI software
Stencil Size: (29" X 29")
Signal Light Tower
17" flat panel display
PC controlled with keyboard and trackball interface
SPC data collection
SMEMA handshake, Ethernet communication and CE certification
208V / 240V single phase power
(2) Trailing Edge Metal Squeegee Blades, (1) Plenum, (1) Paper Roll Standard Support Pin Tooling Kit (20 pins)
Grid-Lok, 6 module kit
Gerber EZ Teach
Automated Paste Dispenser (supports 6 oz. & 12 oz. cartridges)
EdgeLoc Snugger System
Advanced Post Print Inspection Package
Contrast Based 2D Inspection (paste on pad) & BridgeVision
Fully Functional
Specifications
Manufacturer | MPM |
Model | Momentum Standard |
Year | 2010 |
Condition | Used |
Stock Number | 1347662 |
Process flow | Left to Right |
Hours | ? |
Software | Windows OS |
Vintage | 2008 (OEM Refurbished 2010) |
